How to Plot Points in Google Maps (2025 Step-by-Step Guide)
How to Plot Points in Google Maps: Complete Technical Guide
Plotting multiple points on Google Maps is essential for businesses displaying locations, service areas, or event venues. While Google provides powerful mapping APIs, implementing a custom solution requires significant technical expertise. Here’s your complete guide to plotting points using the Google Maps JavaScript API.
Method 1: Custom Implementation with Google Maps API
Step 1: Google Cloud Project Configuration
Before any coding, set up access to Google’s mapping services:
- 1. Create Google Cloud Project
- – Go to [Google Cloud Console]
- – Create new project or select existing one
- – Enable billing (credit card required, includes $200 monthly credit)

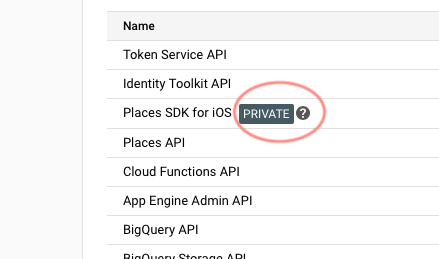

- 2. Enable Required APIs
- Navigate to “APIs & Services > Library” and enable:
- – Maps JavaScript API (core mapping functionality)
- – Geocoding API (address to coordinates conversion)
- – Places API (for location search and autocomplete)
- 3. Generate Secure API Key
- – Go to “Credentials” section
- – Create new API key
- – Restrict by HTTP referrers (your domain)
- – Apply API restrictions to specific mapping services
Proper API key restriction is essential for security and cost control.
Step 2: Complete HTML/JavaScript Implementation
Create `plot-google-maps.html` with this fully functional code:
html
<!DOCTYPE html>
<html>
<head>
<title>Plot Points in Google Maps</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<style>
.google-maps-container {
max-width: 1400px;
margin: 0 auto;
font-family: 'Roboto', Arial, sans-serif;
padding: 20px;
}
#google-map {
height: 700px;
width: 100%;
border-radius: 12px;
border: 1px solid #dadce0;
margin: 25px 0;
box-shadow: 0 2px 10px rgba(0,0,0,0.1);
}
.google-controls {
background: #f8f9fa;
padding: 25px;
border-radius: 12px;
margin: 20px 0;
border: 1px solid #dadce0;
}
.point-item {
background: white;
border-radius: 8px;
padding: 20px;
margin: 15px 0;
border-left: 4px solid #1a73e8;
box-shadow: 0 1px 3px rgba(0,0,0,0.1);
transition: all 0.2s ease;
}
.point-item:hover {
box-shadow: 0 2px 6px rgba(0,0,0,0.15);
transform: translateY(-1px);
}
.google-input {
padding: 14px 16px;
width: 350px;
border: 1px solid #dadce0;
border-radius: 8px;
font-size: 16px;
margin-right: 12px;
transition: border 0.2s ease;
}
.google-input:focus {
outline: none;
border-color: #1a73e8;
box-shadow: 0 0 0 2px #e8f0fe;
}
.google-button {
padding: 14px 28px;
background: #1a73e8;
color: white;
border: none;
border-radius: 8px;
cursor: pointer;
font-size: 16px;
font-weight: 500;
margin: 0 8px;
transition: all 0.2s ease;
}
.google-button:hover {
background: #1669d6;
box-shadow: 0 2px 6px rgba(26,115,232,0.3);
}
.google-button.secondary {
background: #5f6368;
}
.google-button.secondary:hover {
background: #4e5257;
}
.google-button.danger {
background: #d93025;
}
.google-button.danger:hover {
background: #c5221f;
}
.coordinates-display {
font-family: 'Roboto Mono', monospace;
background: #f1f3f4;
padding: 8px 12px;
border-radius: 6px;
font-size: 14px;
color: #5f6368;
}
.stats-panel {
display: flex;
gap: 20px;
margin: 20px 0;
flex-wrap: wrap;
}
.stat-card {
background: white;
padding: 20px;
border-radius: 8px;
flex: 1;
min-width: 200px;
box-shadow: 0 1px 3px rgba(0,0,0,0.1);
text-align: center;
}
</style>
<link href="https://fonts.googleapis.com/css2?family=Roboto:wght@300;400;500;700&family=Roboto+Mono&display=swap" rel="stylesheet">
</head>
<body>
<div class="google-maps-container">
<h1 style="color: #202124; margin-bottom: 8px; font-weight: 500;">Plot Points in Google Maps</h1>
<p style="color: #5f6368; font-size: 18px; margin-bottom: 30px;">Create interactive maps with custom markers and detailed location information</p>
<div class="stats-panel">
<div class="stat-card">
<div style="font-size: 14px; color: #5f6368; margin-bottom: 8px;">TOTAL POINTS</div>
<div id="total-points" style="font-size: 32px; font-weight: 700; color: #1a73e8;">0</div>
</div>
<div class="stat-card">
<div style="font-size: 14px; color: #5f6368; margin-bottom: 8px;">MAP TYPE</div>
<div style="font-size: 18px; font-weight: 500; color: #202124;">Interactive</div>
</div>
<div class="stat-card">
<div style="font-size: 14px; color: #5f6368; margin-bottom: 8px;">LAST UPDATED</div>
<div id="last-updated" style="font-size: 14px; color: #202124;">Just now</div>
</div>
</div>
<div class="google-controls">
<h3 style="color: #202124; margin-top: 0; margin-bottom: 20px;">Add Points to Map</h3>
<div style="display: flex; align-items: center; flex-wrap: wrap; gap: 15px; margin-bottom: 20px;">
<input type="text" id="location-query" class="google-input"
placeholder="Search for an address or place...">
<input type="text" id="point-label" class="google-input"
placeholder="Custom label (optional)" style="width: 250px;">
<button onclick="addPointToMap()" class="google-button">+ Add Point</button>
<button onclick="clearMapPoints()" class="google-button danger">Clear All</button>
</div>
<div style="display: flex; gap: 25px; flex-wrap: wrap;">
<div>
<label style="display: flex; align-items: center; color: #5f6368;">
<input type="checkbox" id="auto-center" checked style="margin-right: 8px;">
Auto-center map on points
</label>
</div>
<div>
<label style="display: flex; align-items: center; color: #5f6368;">
<input type="checkbox" id="show-coordinates" checked style="margin-right: 8px;">
Show coordinates in info windows
</label>
</div>
<div>
<label style="display: flex; align-items: center; color: #5f6368;">
<input type="checkbox" id="enable-clustering" checked style="margin-right: 8px;">
Enable marker clustering
</label>
</div>
</div>
</div>
<div id="google-map"></div>
<div style="background: white; padding: 30px; border-radius: 12px; box-shadow: 0 1px 3px rgba(0,0,0,0.1);">
<h3 style="color: #202124; margin-bottom: 25px; display: flex; align-items: center;">
Plotted Points
<span id="points-badge" style="background: #1a73e8; color: white; padding: 4px 12px; border-radius: 16px; font-size: 14px; margin-left: 12px; font-weight: 500;">0</span>
</h3>
<div id="points-container"></div>
</div>
</div>
<!-- Load Google Maps API with required libraries -->
<script src="https://maps.googleapis.com/maps/api/js?key=YOUR_API_KEY_HERE&libraries=places,geometry&callback=initGoogleMap" async defer></script>
<script>
let googleMap;
let mapMarkers = [];
let mapGeocoder;
let mapInfoWindow;
let mapPoints = [];
let placesService;
function initGoogleMap() {
// Initialize Google Map with custom options
googleMap = new google.maps.Map(document.getElementById('google-map'), {
center: { lat: 39.8283, lng: -98.5795 }, // Center of US
zoom: 4,
styles: [
{
"featureType": "administrative",
"elementType": "geometry",
"stylers": [{ "visibility": "off" }]
},
{
"featureType": "poi",
"stylers": [{ "visibility": "off" }]
},
{
"featureType": "road",
"elementType": "labels.icon",
"stylers": [{ "visibility": "off" }]
},
{
"featureType": "transit",
"stylers": [{ "visibility": "off" }]
}
],
mapTypeControl: true,
mapTypeControlOptions: {
style: google.maps.MapTypeControlStyle.DROPDOWN_MENU,
mapTypeIds: ['roadmap', 'satellite', 'hybrid']
},
zoomControl: true,
streetViewControl: false,
fullscreenControl: true
});
mapGeocoder = new google.maps.Geocoder();
mapInfoWindow = new google.maps.InfoWindow();
placesService = new google.maps.places.PlacesService(googleMap);
// Initialize autocomplete for search
const searchInput = document.getElementById('location-query');
const autocomplete = new google.maps.places.Autocomplete(searchInput);
autocomplete.bindTo('bounds', googleMap);
// Add sample data points
const sampleData = [
{
id: 1,
name: "Google Headquarters",
position: { lat: 37.4220, lng: -122.0841 },
address: "1600 Amphitheatre Parkway, Mountain View, CA",
type: "headquarters",
description: "Google's main campus with visitor center"
},
{
id: 2,
name: "Google New York",
position: { lat: 40.7414, lng: -74.0054 },
address: "111 8th Avenue, New York, NY",
type: "office",
description: "Google's Chelsea Market office"
},
{
id: 3,
name: "Google Austin",
position: { lat: 30.2672, lng: -97.7431 },
address: "500 W 2nd St, Austin, TX",
type: "office",
description: "Google's Austin campus"
},
{
id: 4,
name: "Google Seattle",
position: { lat: 47.6062, lng: -122.3321 },
address: "601 N 34th St, Seattle, WA",
type: "office",
description: "Google's Fremont office in Seattle"
}
];
// Plot sample points
sampleData.forEach(point => {
createMapMarker(point);
});
updatePointsInterface();
updateLastUpdated();
}
function createMapMarker(pointData) {
// Create custom marker with Google Maps styling
const marker = new google.maps.Marker({
position: pointData.position,
map: googleMap,
title: pointData.name,
icon: {
url: getCustomMarkerIcon(pointData.type),
scaledSize: new google.maps.Size(32, 32),
anchor: new google.maps.Point(16, 32)
},
animation: google.maps.Animation.DROP
});
// Create comprehensive info window
const infoContent = createInfoWindowContent(pointData);
marker.addListener('click', () => {
mapInfoWindow.setContent(infoContent);
mapInfoWindow.open(googleMap, marker);
// Add bounce animation
marker.setAnimation(google.maps.Animation.BOUNCE);
setTimeout(() => marker.setAnimation(null), 1400);
});
mapMarkers.push(marker);
mapPoints.push(pointData);
if (document.getElementById('auto-center').checked) {
adjustMapBounds();
}
updateStats();
}
function getCustomMarkerIcon(type) {
const iconBase = 'https://maps.google.com/mapfiles/ms/icons/';
const colorMap = {
'headquarters': 'red-dot.png',
'office': 'blue-dot.png',
'retail': 'green-dot.png',
'warehouse': 'orange-dot.png',
'default': 'purple-dot.png'
};
return iconBase + (colorMap[type] || colorMap['default']);
}
function createInfoWindowContent(pointData) {
const showCoords = document.getElementById('show-coordinates').checked;
return `
<div style="min-width: 280px; font-family: 'Roboto', sans-serif;">
<div style="padding: 20px;">
<h3 style="margin: 0 0 12px 0; color: #202124; font-weight: 500;">${pointData.name}</h3>
<div style="margin-bottom: 12px;">
<div style="font-size: 14px; color: #5f6368; margin-bottom: 4px;">📍 Address</div>
<div style="color: #202124; font-size: 14px;">${pointData.address}</div>
</div>
<div style="margin-bottom: 12px;">
<div style="font-size: 14px; color: #5f6368; margin-bottom: 4px;">📝 Description</div>
<div style="color: #202124; font-size: 14px; font-style: italic;">${pointData.description}</div>
</div>
${showCoords ? `
<div style="margin-bottom: 16px;">
<div style="font-size: 14px; color: #5f6368; margin-bottom: 4px;">🎯 Coordinates</div>
<div class="coordinates-display" style="display: inline-block;">
${pointData.position.lat.toFixed(6)}, ${pointData.position.lng.toFixed(6)}
</div>
</div>
` : ''}
<div style="display: flex; gap: 10px; margin-top: 16px;">
<button onclick="focusOnMarker(${pointData.position.lat}, ${pointData.position.lng})"
style="flex: 1; padding: 10px; background: #1a73e8; color: white; border: none; border-radius: 6px; cursor: pointer; font-size: 14px;">
Focus on Map
</button>
<button onclick="getGoogleDirections(${pointData.position.lat}, ${pointData.position.lng})"
style="flex: 1; padding: 10px; background: #34a853; color: white; border: none; border-radius: 6px; cursor: pointer; font-size: 14px;">
Get Directions
</button>
</div>
</div>
</div>
`;
}
function addPointToMap() {
const searchInput = document.getElementById('location-query');
const labelInput = document.getElementById('point-label');
const autocomplete = new google.maps.places.Autocomplete(searchInput);
const place = autocomplete.getPlace();
if (!place || !place.geometry) {
alert('Please select a valid location from the dropdown suggestions');
return;
}
const newPoint = {
id: Date.now(),
name: labelInput.value || `Location ${mapPoints.length + 1}`,
position: place.geometry.location,
address: place.formatted_address,
type: 'office',
description: 'Added via Google Places search'
};
createMapMarker(newPoint);
updatePointsInterface();
updateLastUpdated();
// Clear inputs
searchInput.value = '';
labelInput.value = '';
}
function clearMapPoints() {
if (mapPoints.length === 0) return;
if (!confirm(`Remove all ${mapPoints.length} points from the map?`)) {
return;
}
mapMarkers.forEach(marker => marker.setMap(null));
mapMarkers = [];
mapPoints = [];
updatePointsInterface();
updateStats();
updateLastUpdated();
}
function updatePointsInterface() {
const container = document.getElementById('points-container');
const badge = document.getElementById('points-badge');
badge.textContent = mapPoints.length;
container.innerHTML = '';
if (mapPoints.length === 0) {
container.innerHTML = `
<div style="text-align: center; padding: 60px 20px; color: #5f6368;">
<div style="font-size: 64px; margin-bottom: 16px;">🗺️</div>
<h3 style="color: #5f6368; margin-bottom: 12px;">No points plotted yet</h3>
<p style="color: #5f6368; max-width: 400px; margin: 0 auto;">
Use the search bar above to add points to your Google Map
</p>
</div>
`;
return;
}
mapPoints.forEach((point, index) => {
const pointElement = document.createElement('div');
pointElement.className = 'point-item';
pointElement.innerHTML = `
<div style="display: flex; justify-content: space-between; align-items: flex-start; margin-bottom: 12px;">
<h4 style="margin: 0; color: #202124; font-weight: 500; flex: 1;">${point.name}</h4>
<span style="background: #f1f3f4; color: #5f6368; padding: 4px 12px; border-radius: 12px; font-size: 12px; text-transform: capitalize;">
${point.type}
</span>
</div>
<p style="margin: 8px 0; color: #5f6368; line-height: 1.5;">${point.address}</p>
<p style="margin: 8px 0; color: #5f6368; font-size: 14px; font-style: italic;">${point.description}</p>
<div style="display: flex; justify-content: space-between; align-items: center; margin-top: 16px;">
<span class="coordinates-display">${point.position.lat.toFixed(6)}, ${point.position.lng.toFixed(6)}</span>
<div>
<button onclick="focusOnMarker(${point.position.lat}, ${point.position.lng})" class="google-button secondary" style="padding: 8px 16px;">
View on Map
</button>
<button onclick="removeMapPoint(${index})" class="google-button danger" style="padding: 8px 16px;">
Remove
</button>
</div>
</div>
`;
container.appendChild(pointElement);
});
}
function focusOnMarker(lat, lng) {
googleMap.setCenter({ lat, lng });
googleMap.setZoom(15);
}
function removeMapPoint(index) {
if (index >= 0 && index < mapMarkers.length) {
mapMarkers[index].setMap(null);
mapMarkers.splice(index, 1);
mapPoints.splice(index, 1);
updatePointsInterface();
updateStats();
updateLastUpdated();
adjustMapBounds();
}
}
function getGoogleDirections(lat, lng) {
const url = `https://www.google.com/maps/dir/?api=1&destination=${lat},${lng}`;
window.open(url, '_blank');
}
function adjustMapBounds() {
if (mapMarkers.length === 0) return;
const bounds = new google.maps.LatLngBounds();
mapMarkers.forEach(marker => {
bounds.extend(marker.getPosition());
});
googleMap.fitBounds(bounds);
// Prevent excessive zoom for single marker
if (mapMarkers.length === 1 && googleMap.getZoom() > 16) {
googleMap.setZoom(16);
}
}
function updateStats() {
document.getElementById('total-points').textContent = mapPoints.length;
}
function updateLastUpdated() {
const now = new Date().toLocaleTimeString();
document.getElementById('last-updated').textContent = now;
}
// Handle API authentication failures
window.gm_authFailure = function() {
alert('Google Maps API Error: Please verify your API key configuration and billing setup.');
};
// Handle Enter key in search field
document.getElementById('location-query').addEventListener('keypress', function(e) {
if (e.key === 'Enter') {
addPointToMap();
}
});
// Real-time map type changes
googleMap.addListener('maptypeid_changed', function() {
console.log('Map type changed to:', googleMap.getMapTypeId());
});
</script>
</body>
</html>
Code language: HTML, XML (xml)Replace `YOUR_API_KEY_HERE` with your actual Google Maps API key.
Professional Google Maps implementation with custom markers and comprehensive point management.
Step 3: Implementation and Deployment Challenges
When deploying this Google Maps solution, you’ll need to address:
- – API quota management and daily usage limits
- – Cross-browser compatibility testing
- – Mobile responsiveness and touch interface optimization
- – Geocoding service reliability and rate limiting
- – SSL certificate requirements for modern browsers
- – Performance optimization for large datasets
- – Error handling for network failures and API limits
The Reality of Google Maps API Development
While this approach provides maximum customization, it comes with significant challenges:
- – Development Time: 30-50 hours for production-ready implementation
- – API Cost Management: Complex pricing model with potential for unexpected charges
- – Browser Compatibility: Extensive testing across Chrome, Firefox, Safari, Edge
- – Mobile Optimization: Complex touch gesture handling and responsive design
- – Security Maintenance: Regular updates to prevent API key exposure and abuse
- – Performance Optimization: Marker clustering, lazy loading, and memory management
- – Ongoing Maintenance: API version updates and deprecated feature replacement
- – Error Handling: Comprehensive error management for all possible failure scenarios

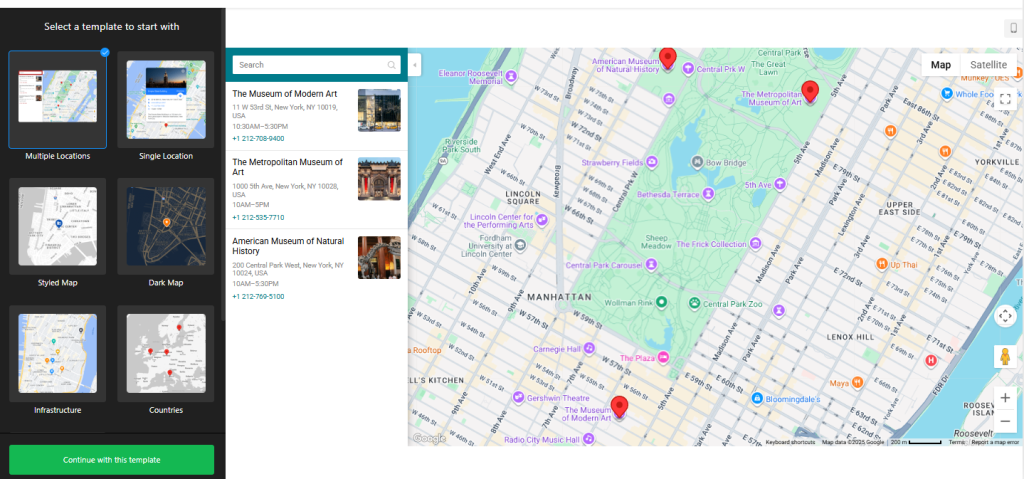

Plot Points Instantly with MapsFun.com
Why spend weeks mastering Google Maps APIs when you can achieve professional results in minutes?
MapsFun.com eliminates all technical complexity while delivering enterprise-grade mapping:
- 🗺️ Google Maps Integration – All the power without the complexity
- 📍 Visual Point Management – Drag-and-drop interface with instant plotting
- 📊 Bulk Import Tools – Upload CSV/Excel files with thousands of locations
- 🎨 Professional Styling – Custom colors, icons, and map themes
- 🚀 Zero Configuration – No API keys, coding, or technical setup required
- 📱 Mobile Optimized – Perfect experience on all devices automatically
- 🔧 Team Collaboration – Multiple users can edit and manage maps
- 📈 Usage Analytics – Track map engagement and user interactions
Stop struggling with complex Google Maps APIs and fragile code. Create stunning, interactive point maps in minutes at MapsFun.com – the intelligent alternative to DIY Google Maps development.
